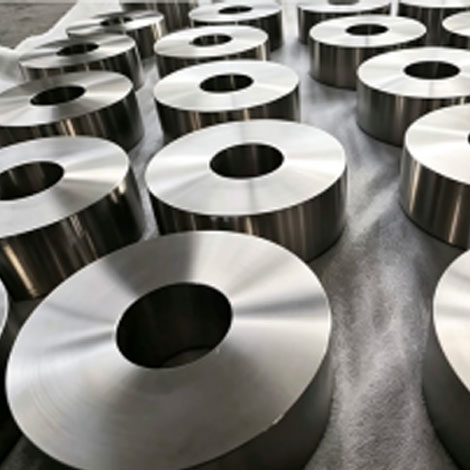

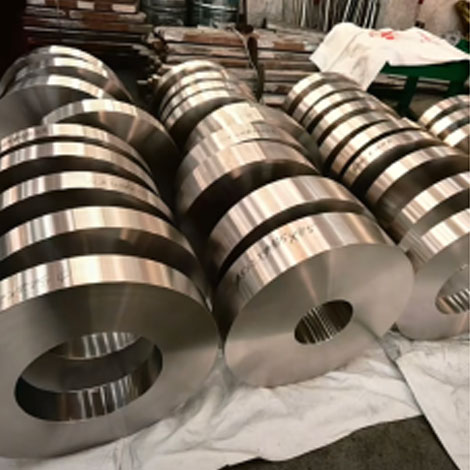

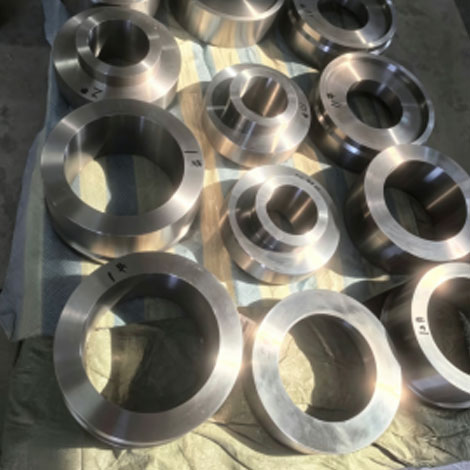

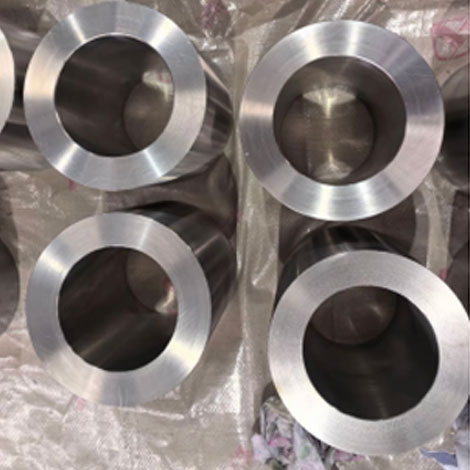

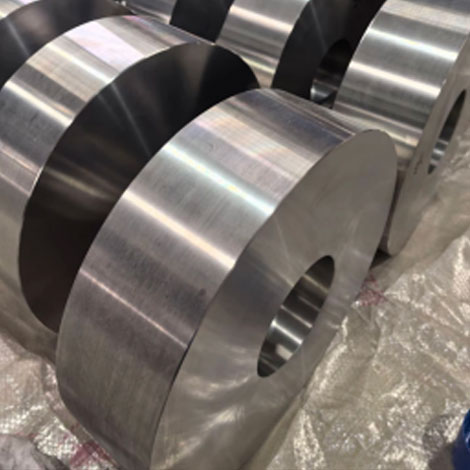

Titanium Rings & Discs
Premium Quality
Titanium Rings & Discs
Grade：Gr1、Gr2、Gr3、Gr5、Gr7、Gr12
Product Type：Disc;Ring
Supply Condition：Hot-worked (R);Annealed (M)
Surface Treatment：Polished & Pickled
Technical Data
Specifications
| Grade, Condition and Specification of Titanium Rings & Discs | |||||||
| Grade | Supply Condition | Product Type | Surface Treatment | Specification / mm | |||
| Outer Diameter | Inner Diameter | Section Height | Ring Thickness | ||||
| Gr1、Gr2、Gr3、Gr5、Gr7、Gr12 | Hot-worked (R) Annealed (M) | Disc | Polished & Pickled | 150-300 | —— | 36-140 | —— |
| ≥300-500 | —— | 35-150 | —— | ||||
| ≥500-800 | —— | 40-110 | —— | ||||
| Ring | =200-400 | 100-300 | 35-120 | 40-150 | |||
| >400-700 | 160-500 | 40-160 | 40-250 | ||||
| >700-900 | 300-700 | 50-180 | 40-300 | ||||
| >900-1300 | 400-900 | 70-250 | 40-400 | ||||
Overview
Product Description
Shaanxi Xingmutongda Titanium Ring — Stable, Reliable, Suitable for Harsh Working Conditions
Looking for titanium rings suitable for high-pressure and corrosive working conditions for your industrial projects? Shaanxi Xingmutongda Trading Co., Ltd. specializes in supplying high-quality titanium and titanium alloy ring parts. It achieves a perfect professional balance between dimensional accuracy, structural strength and sealing compatibility, delivering excellent performance in aerospace, petrochemical, nuclear power, marine engineering and other fields.
Why This Product
Features & Advantages
Excellent Sealing Compatibility: High fitting degree with matching parts to achieve stable and reliable sealing and connection
Corrosion Resistance: Stable performance in harsh corrosive environments such as acid, alkali, seawater, oil and gas
High Strength-to-Weight Ratio: Realize high bearing capacity with lightweight structure, reducing the overall self-weight burden of equipment
Uniform and Stable Performance: Dense internal structure of each titanium ring with consistent batch quality
Strong Processing Adaptability: Customizable size and precision as required, suitable for turning, welding, heat treatment and other processing technologies
Multi-scenario Adaptation: Applicable to high-pressure working condition requirements in aerospace, nuclear power, chemical industry, marine engineering and other industries
Performance Data
Mechanical Properties
| Mechanical Properties of Titanium Rings & Titanium Discs | |||||
| Grade | Cross-sectional Area / cm² | Room Temperature Mechanical Properties, Min | |||
| Tensile Strength σb / MPa | Proof Strength σr0.2 / MPa | Elongation δ5 / % | Reduction of Area ψ / % | ||
| Gr1 | ≤100 | 280 | 170 | 30 | 35 |
| Gr2 | 440 | 320 | 18 | 35 | |
| Gr3 | 540 | 410 | 18 | 30 | |
| Gr7 | 370 | 250 | 20 | 30 | |
| Gr12 | 485 | 345 | 18 | 25 | |
| Gr5 | 895 | 825 | 10 | 25 | |
Where It's Used
Industrial Applications
With superior comprehensive performance, our titanium tubes cover industrial manufacturing in multiple fields in depth:
- Aerospace: Aero-engine pipelines, auxiliary structural pipes, airborne precision pipeline accessories
- Medical Equipment: Dental medical pipes, human implant pipelines, surgical medical precision accessories
- Marine Engineering: Offshore platform pipelines, submarine supporting pipes, seawater circulation system
- Chemical Industry: Heat exchange equipment pipelines, reaction kettle pipelines, corrosion-resistant fluid transmission pipelines
- Automobile Manufacturing: High-temperature resistant exhaust pipelines, lightweight structural pipes, high-performance automotive accessories
- Oil and Gas Energy: Downhole transmission pipes, corrosion-resistant pipelines, special pipes for extreme working conditions
Our Promise
Why Choose Us
- Industry Experience Accumulation: Long-term focus on the production and sales of titanium and titanium alloy materials, familiar with material standards of various industries with solid professional experience
- Source Quality Control: Self-owned stable raw material supply chain, full production quality inspection, uniform pipe wall thickness, qualified purity and stable performance
- Flexible Customization Service: Support cutting, finish machining and non-standard specification customization to match customers' personalized production needs
- Stable Delivery Guarantee: Sufficient spot inventory, stable production capacity and reasonable production scheduling with stable delivery time
- Global Thoughtful Service: One-on-one docking by professional foreign trade team, efficient response, factory direct supply with high cost performance, stable and reliable for long-term cooperation
Quality Assurance
Inspection Reports & Certificates
Three-Level Quality Control System, Full Traceability Guarantee. We have established a three-level full-chain quality control system covering incoming raw materials, production process and finished product delivery. For each batch of titanium materials, strict sampling inspection on chemical composition is implemented at the source to prevent unqualified raw materials from entering production lines. During production, quality control points are set in key processes to monitor dimensional accuracy, surface finish and other indicators in real time. Before delivery, finished products pass mechanical performance tests, non-destructive flaw detection and multiple inspections to ensure all performance meets customer requirements.
We can provide complete material certificates and factory inspection reports for all products, ensuring chemical composition, mechanical properties and other indicators comply with ASTM, GB and other domestic and international standards, supplying traceable and trustworthy high-quality titanium materials for global customers.
Source Control
Chemical Composition Analysis
Process Monitoring
Dimensional Accuracy Control
Final Inspection
Traceable Quality Reports
Common Questions
Frequently Asked Questions
Q: What is the normal lead time for standard targets?
A: Standard sizes are usually shipped within 2‑3 weeks, while custom fabrication takes 4‑6 weeks depending on specifications.
Q: Can you provide backing plate bonding service?
A: Yes, we offer professional bonding service with copper or silver backing plates optimized for your sputtering systems.
Q: Do you provide professional support for target selection?
A: Yes, our engineers will conduct comprehensive consultations to ensure you select the ideal target configuration for specific applications.
